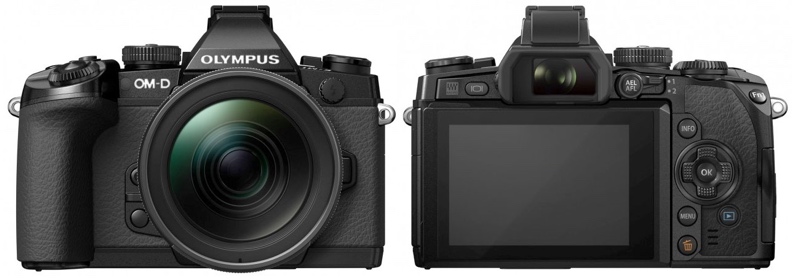

Olympus OM-D E-M1


The OM-D E-M1 was Olympus' second DSLR-like mirrorless camera, with a built-in EVF and DSLR-style controls in a slightly larger package than the original E-M5. It was not an update of the E-M5, but added more features and performance.

  • Sensor: 16mp Sony CMOS sensor, 17.3 x 13mm (2x crop), five-axis sensor stabilization, no AA filter
  • Mount: Micro 4/3 (m4/3)
  • Images:  4608x3456 pixel JPEG or 12-bit ORF maximum, 10 fps max (with fixed focus), 6.5 fps otherwise; 40 frame minimum raw buffer
  • Video: 1080P/30, 720P/30, 480P/30 MOV file (MPEG-4AVC/H.264) or for 720P also AVI Motion JPEG file,  stereo 48kHz sampled 16-bit PCM audio, 20Mbit/s max bitrate
  • Shutter: mechanical 60 sec to 1/8000 sec, bulb (+1 to 30 minute settings)
  • Exposure: matrix, center-weighted, spot metering, -5 to +5EV exposure compensation, 7 white balance settings (plus Preset K's, Auto and Custom), ISO 200-25,600, plus LOW, AUTO ISO
  • Focus: 37 Phase detect AF targets on sensor, plus 800 point, 35 area contrast detect, single point, multi-area, face detect, tracking, manual focus override, focus peaking
  • Display: 3" 1.037m dot tilt touchscreen LCD, 2.36m VF-4 EVF (.74x magnification, 18mm eyepoint, -4 to +1 diopter correction)
  • Flash: included FL-LM2 flash (7GN m@100 ISO), hot shoe, 1/320 flash sync (also Super FP to 1/8000), red-eye reduction, slow sync, rear sync, three-level manual, PC sync socket
  • Remote: optional RM-UC1
  • Other Notable Features: WiFi, optional accessory slot, interval timer, HDR mode, dust proof/drip proof
  • Cards: SD, SDHC, SDXC (UHS-I, Eye-Fi compatible)
  • Battery: BLN-1 (350 shot CIPA)
  • Size: 5.1 x 3.7 x 2.5" (130 x 93.5 x 63.1mm) wide, tall, deep
  • Weight: 15.6 ounces (443g) body only
  • Colors: Black, Silver
  • Price: US$1400 body only
  • Current Firmware: version 4.5 (August 2020)
  • Announced: September 10, 2013, shipped in October 2013

Note: the silver version of the camera was introduced at Photokina 2014 with firmware 2.0

Thom's Review of the Olympus E-M1

Olympus Lenses for the camera

Panasonic Lenses for the camera
