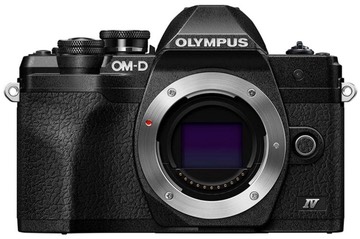

Olympus OM-D E-M10 Mark IV

bythom olympus em10iv

The OM-D E-M10 Mark IV is the third update of Olympus' entry and smallest DSLR-like mirrorless camera, with a built-in EVF and DSLR-style controls in a very small package (smaller than the E-M1 and E-M5, but without weatherproofing). This fourth iteration moves the camera to Olympus' current sensor and feature set.

  • Sensor
    • 20.3mp Sony CMOS sensor
    • m4/3 format, 17.4 x 13mm (2x crop)
    • five-axis sensor stabilization (4.5 stops CIPA)
  • Mount: Micro 4/3 (m4/3)
  • ISP:
  • Images:
    • 5184 x 3888 pixel JPEG or 12-bit ORF maximum
    • 22 frame minimum raw buffer
  • Video:
    • 4K 2160P/30/25/24 at 102Mbps
    • 1080P/60/5030/25/24
    • H.264 using IPB compression stored in .MOV file, 77Mbps max bit rate
    • stereo 48kHz sampled 16-bit PCM 48kHz audio
  • Shutter:
    • mechanical 60 sec to 1/4000 sec, bulb (+1 to 30 minute settings)
    • anti-shock electronic first curtain 60 sec to 1/320
    • electronic silent to 1/16,000
    • 1/250 flash sync
    • Live Composite supported
    • 15 fps max (S-AF; 6.3 fps C-AF)
  • Exposure:
    • matrix, center-weighted, spot metering
    • -5 to +5EV exposure compensation
    • 6 white balance settings (plus Preset K's, Auto and Custom)
    • ISO 200-25,600, AUTO ISO, plus Low (approximately 100)
  • Focus:
    • 121 point area contrast detect
    • single point, multi-area, face detect, tracking, manual focus override
  • Display:
    • 3" 1.04m dot
    • tilting touchscreen LCD
    • tilts 180° down
  • Viewfinder:
    • 2.36m dot OLED EVF
    • 0.62x magnification
    • 19.2mm eyepoint
    • -4 to +2 diopter
  • Flash:
    • built-in flash (5.8GN m@100 ISO)
    • hot shoe
    • Super FP to 1/4000)
    • red-eye reduction, slow sync, rear sync, three-level manual, wireless capability
  • Remote: optional RM-UC1
  • Connectivity::
    • Wi-Fi (802.11b/g/n)
    • Bluetooth
    • USB 2.0
    • mic input
    • optional accessory slot
  • Cards:
    • Single slot
    • SD, SDHC, SDXC
    • UHS-II support
  • Battery:
    • BLS-50
    • 360 shots CIPA
    • supports USB charging
  • Size and Weight:
    • 4.8" (121.7mm) wide
    • 3.3" (84.4mm) tall
    • 2" (49mm) deep
    • 12.8 ounces (335g) body only
    • 14.5 ounces (383g) with battery and card
  • Colors: Black, Silver
  • Price:
    • US$699 body only
    • US$799 with 14-42mm f/3.5-5.6 collapsing kit lens
  • Current Firmware: version 1.3 (February 2023)
  • Announced: August 4, 2020
