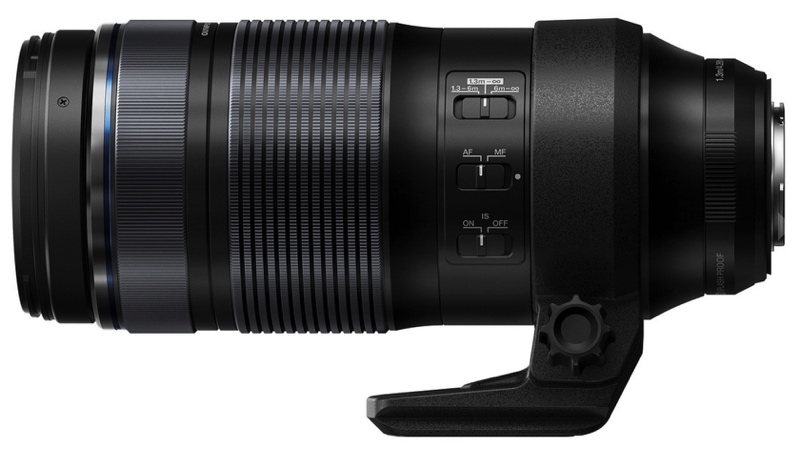

OMDS 100-400mm f/5-6.3 IS II Lens Specifications

bythom olympus 100400
  • Mount: m4/3
  • Build: dust and splash proof design, IPX1 rated
  • Angle of View: 3.1-12° diagonal
  • Optical Design:
    • 21 elements in 15 groups
    • 2 Super HR, 4 ED, and 2 HR elements
    • ZERO, fluorine coatings
  • Aperture:
    • from f/5 to f/22 at 100mm
    • 9-blade rounded diaphragm
  • Stabilization: IS (up to 7 stops CIPA)
  • Focus:
    • autofocus, internal focus
    • stepper motor
    • 4.3' (1.3m) minimum focus
    • 1:3.4 maximum magnification (at 400mm)
  • Filter: 72mm front filter size, LH-76D hood included
  • Size and weight:
    • 8.1" (205.7mm) long, retracted
    • 3.4" (86.4mm) diameter
    • 39.5 ounces (1120g)
  • Price: US$1499 suggested retail
  • Announced: February 6, 2025
