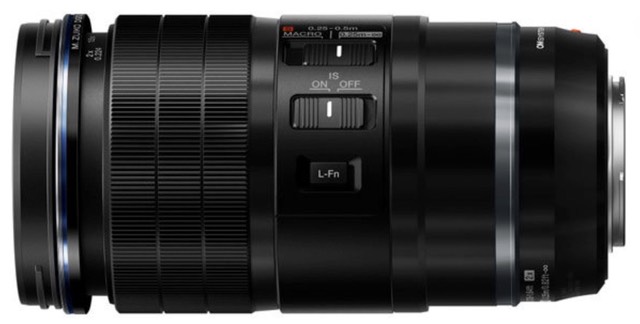

M.Zuiko 90mm f/3.5 Macro IS PRO Lens Specifications

bythom omsystem 90mm
  • Mount: m4/3 lens format
  • Build: dust proof, splash proof, freeze proof (IP53 rated)
  • Optical Design
    • 18 elements in 13 groups
    • 2 Super ED, 4 ED, 2 Super HR, 1 HR elements
    • ZERO lens coating
  • Angle of View: not specified
  • Aperture:
    • f/3.5 to f/22
    • 7-blade rounded diaphragm
  • Image Stabilization: up to 6 stops with lens, 7 stops with lens+sensor
  • Focus:
    • 9” (0.224m) minimum focus
    • 3.7" (0.093m) working distance
    • 2:1 maximum magnification
    • autofocus, manual focus ring (with distance scale)
    • internal focus
  • Filters: 62mm front filter ring
  • Size and Weight:
    • 5.4” (136mm) long
    • 2.8” (69.8mm) diameter
    • 16 ounces (453g)
  • available in black
  • Other:
    • LH-66E lens hood supplied
    • Optional tripod collar
    • Supports teleconverters
    • L-Fn button
    • Focus limiter switch (0.25-0.5m, 0.25-infinity)
  • Price: US$1500 suggested retail price
  • Announced: February 8, 2023
