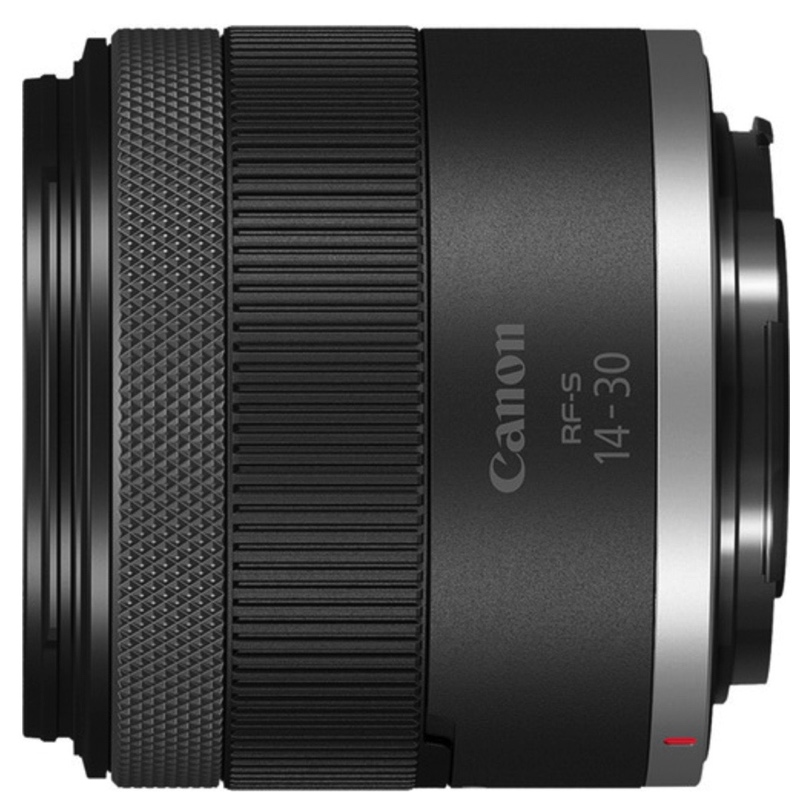

Canon RF-S 14-30mm f/4-6.3 IS Lens Specifications

bythom canon 14-30mm

The wide-angle lens for the APS-S version of the Canon RF mount:

  • Coverage: APS-C
  • Mount: RF mount, weather sealed
  • Angle of View: 48°50' to 88°30' (diagonal)
  • Optical Design:
    • 10 elements in 9 groups
    • Air Super Spectra coating
  • Aperture:
    • f/4 to f/22 at 14mm, f/36 at 30mm
    • 7-blade rounded aperture diaphragm
  • Stabilization: IS (? stops CIPA)
  • Filters: 58mm front filter thread
  • Focus:
    • 6" (.15m) minimum focus from front of lens
    • 1:2.6 maximum magnification ratio
    • automatic/manual focus by wire
    • internal focus
  • Size and Weight:
    • 2.4” (62mm) long (collapsed)
    • 2.7" (69.6mm) diameter
    • 6.4 ounces (181g) weight
  • Price: US$329
  • Announced: March 26, 2025
