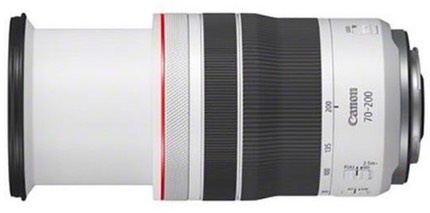

Canon RF 70-200mm f/4L Lens Data

bythom canon 70-200mmf4
  • Coverage: full frame
  • Build: L quality and weather sealing, but no tripod collar
  • Optic design:
    • 16 elements in 11 groups
    • 4 UHD elements
    • Air Sphere, fluorine coating
  • Field of view:  diagonal
  • Stabilization: IS, 5 stops CIPA (also uses sensor-IS if available, up to 7.5 stops CIPA)
  • Additional controls
    • Focus limiter
    • AF/MF switch
    • IS switch, IS 3-mode switch
    • Customizable control ring
  • Aperture:
    • f/4 to f/32
    • 9-blade rounded diaphragm
  • Focus:
    • autofocus, internal focus
    • 24" (0.6m) minimum focus
    • 1:3.6 maximum magnification ratio
    • two Nano ultrasonic motors
  • Filter: 77mm front filter ring
  • Lens hood: supplied
  • Size and Weight:
    • 5.7" (119mm) long (collapsed)
    • 3.3" (83.5mm) diameter
    • 24.2 ounces (695g)
  • Model number:
  • Price: US$1599
  • Announced: November 4, 2020
