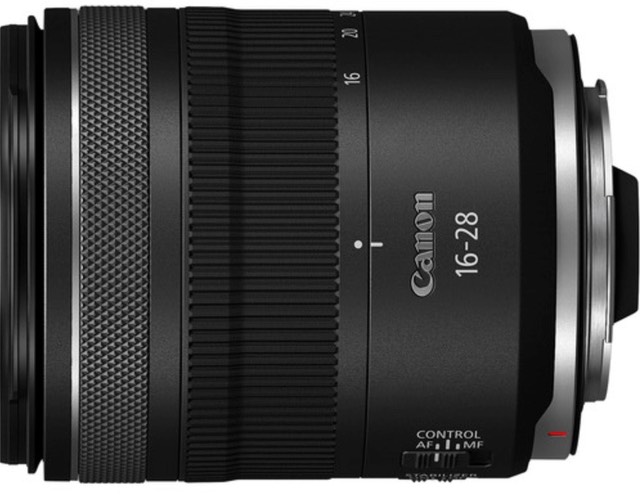

Canon RF 16-28mm f/2.8 IS STM Lens Specifications

bythom canon 1628f28

A lower cost wide angle zoom for the Canon RF mount:

  • Coverage: full frame
  • Mount: RF mount
  • Optical Design:
    • 16 elements in 13 groups
    • 2 aspherical, 4 UD elements
  • Aperture:
    • f/2.8 to f/16, no aperture ring
    • 9-blade rounded aperture diaphragm
  • Stabilization: IS (8 stops CIPA with body IS, 5.5 otherwise)
  • Filters: 67mm front filter thread
  • Focus:
    • 8" (.2m) minimum focus distance autofocus (at 28mm)
    • 1:3.8 maximum magnification ratio (at 28mm)
    • automatic/manual focus by wire
    • internal rear focus
    • No DOF markings
  • Size and Weight:
    • 3.6” (91mm) long (collapsed)
    • 3" (77mm) diameter
    • 15.7 ounces (445g) weight
  • Price: US$1149
  • Announced: January 22, 2025
