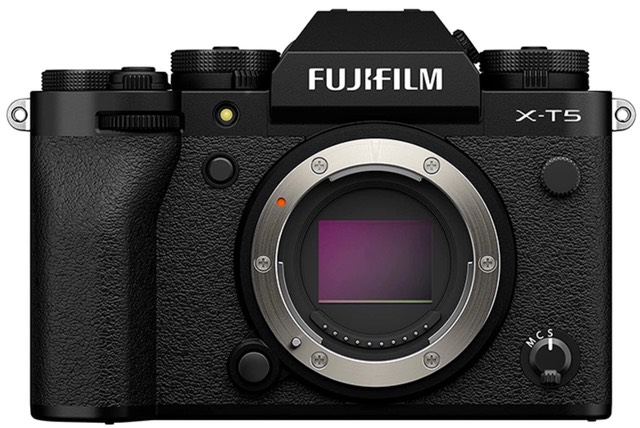

Fujifilm X-T5

bythom fujifilm x-t5

The X-T5 is the four major update to Fujifilm's DSLR-like mirrorless camera using the X mount. The body is magnesium alloy framed and weather sealed, and has been downsized slightly from previous models.

  • Sensor
    • 40mp BSI CMOS sensor, CMOS 5 HR
    • 23.5x15.6 (1.5x crop)
    • non-Bayer color filtration (X-Trans), no AA filter
    • 5-axis sensor-based IS (up to 7 stops CIPA)
  • ISP: X-Processor 5
  • Mount: Fujifilm XF
  • Images:
    • 7728 x 5152 JPEG, 10-bit HEIF, 8- or 16-bit TIFF, 14-bit RAF raw, lossless compressed RAW option, panorama mode
    • 1:1, 3:2, 16:9 aspect ratios
    • Panorama mode 9600 x 2160 or 6400 x 2160 max
    • 20 fps with electronic shutter (1.29x crop), max 72 raw buffer
    • 15 fps with mechanical shutter, max 39 frame raw buffer
    • Pre-shot with electronic shutter (1.29x crop) up to 20 fps
    • Pixel shift multi-shot
  • Video:
    • 6.2K/30/25/24P (max 50-360Mbps)
    • 4K DCI/60/50/30/25/24P (max 50-360Mpbs), 17:9 crop
    • 4K 2160P/60/50/30/25/24 (max 50-720Mbps)
    • 1080P/240/120/60/50/30/25/24 (16:9 or 17:9 crop)
    • H.264 or H.265 MOV or H.264 MP4 with stereo sound, All Intra/Long-GOP
    • 10-bit internal external (4:2:2) recording
    • Linear PCM audio (24 bit, 48Khz sampling) or AAC
    • External recording via HDMI up to 6.2K/30P, 4:2:2, 10-bit
    • F-Log recording, HLG support in upcoming firmware update
  • Shutter:
    • mechanical 30 sec to 1/8,000 sec, bulb, rated to 300k actuations, 35ms shutter lag
    • electronic shutter 16 min to 1/180,000, bulb
  • Exposure:
    • matrix, center-weighted, spot metering
    • -5 to +5EV exposure compensation (video +2/-2)
    • 7 white balance settings (plus Auto, Kelvin, and Custom)
    • ISO 125-12800 (plus extended 80, 100, 125,  25,600, 51,200)
  • Focus:
    • 675 selectable point, phase detect autofocus sensors (near 100% area, 3.3m phase detect pixels)
    • single area, multi-area, wide, zone, tracking, face detection, subject detection (animal/bird/auto//cycle/plane/train), eye detection, manual focus override
    • focus position thumb stick control
    • -7EV focus (phase detect), -4EV (contrast)
  • Rear Display:
    • 3” 1.84m dot
    • 3-direction tilt, touch LCD
  • Viewfinder:
    • 3.69m dot .48” EVF viewfinder
    • 0.80x magnification
    • 24mm eyepoint
    • -5 to +3 diopter
    • 60-100 fps refresh
  • Flash:
    • hot shoe
    • 1/250 flash sync?
    • red-eye reduction, slow sync, rear sync, Auto FP(HSS)
  • Remote: via mobile device
  • Connectivity:
    • WiFi (802.11b/g/n/ac)
    • Bluetooth 4.2LE
    • USB 3.2
    • mic connector
  • Cards:
    • dual SD, SDHC, SDXC slots
    • UHS-II compatible
  • Battery:
    • NP-W235
    • 580 shots CIPA (740 in economy mode)
    • supports USB charging and USB power
  • Size and Weight:
    • 5.3 x 3.6 x 2.5” (129.5 x 91 x 63.8mm) wide, tall, deep
    • 21.4 ounces (557g) including battery and card
  • Colors: Black or silver
  • Price: US$1699 body only
  • Announced: November 2, 2022
  • Current Firmware: version 2.10 (January 2024)

Lenses for this camera
